PA22 Pick & Place Actuator

The PA22 pick & place actuator features a rotary section similar to our A22 rotary actuator coupled with a linear cylinder to produce independently controlled linear and rotary motion of the rod. With standard linear strokes up to 12 inches, optional rod ends, and tie rod construction, the PA22 is an extremely versatile actuator, capable of handling significant loads in any desired sequence. For increased output torque, consider our PA3 pick & place actuator. Multi-position (3, 4, or 5 positions) rotary sections also possible*1.

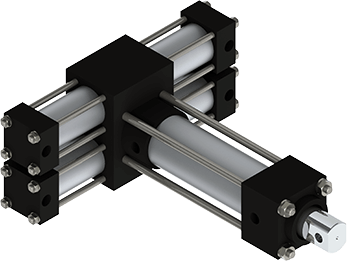

Rotomation PA22 Pick & Place Actuator is a rugged multi-motion actuator that features added linear motion with combined independently-controlled rotary motion



Features:
  • Independently-controlled combined rotary and linear motion
  • Extremely configurable to fit your specific needs
  • Available also with 3, 4, or 5-position rotary section*1
  • Various rotation angles and rotary options like our A22
  • Optional magnetic switches for linear section also
  • Select between standard or keyed, 1" diameter rod ends
  • Optional 'B' rod end (keyed) compatible with SMA-10 adapter
*1Not shown on this page, contact factory for more information.

Do not hesitate to contact us if you need help generating a valid part number or have questions about this product. Click on the button below to send us your question(s); or call us at (386) 676-6377 if you wish to speak to an engineer directly. We will be glad to assist!
