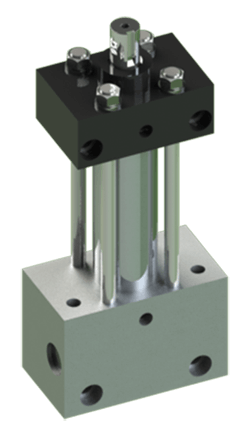

The CL5 hydraulic swing clamp is used specifically to automate the clamping of parts onto machine tables or fixtures. Like our pick & place actuators (e.g. PA2), the linear and rotary sections are independently-controlled. This feature allows the clamp to be stowed in the retracted position, out of the way of tools or part changing activity, which is an important advantage over typical cam-operated swing clamps. With aluminum body/cap and chrome-plated stainless steel rod, it is designed to stand up to aggressive flood coolants.
Ideal for full control on demanding clamping applications
Strokes up to 8 inches with up to 520 pounds of clamping force
Rotation is fixed to 90 degrees clockwise or counterclockwise
Chrome-plated stainless steel 3/4" diameter rod
Standard rod end with flats, keyway and tapped hole - send drawing for special rod ends
Nickel-plated aluminum body, black anodized aluminum end cap, and stainless hardware
Do not hesitate to contact us if you need help generating a valid part number or have questions about this product. Click on the button below to send us your question(s); or call us at (386) 676-6377 if you wish to speak to an engineer directly. We will be glad to assist!
